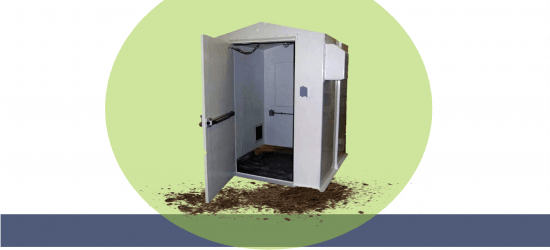

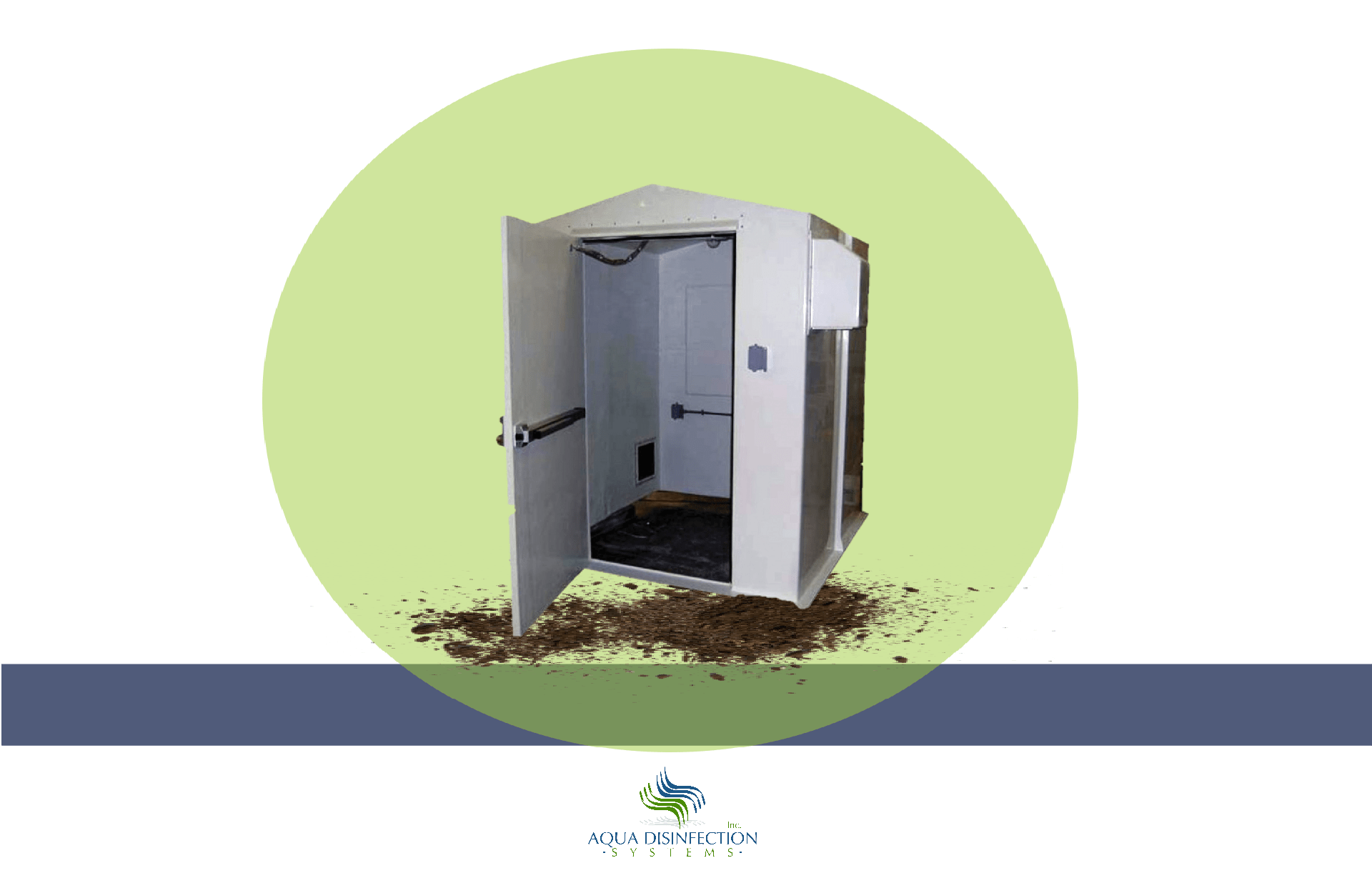

Fiberglass Shelters

Fiberglass shelters are corrosion resistant, lightweight, and easy to install.  They are used in a variety of industries including water and wastewater treatment, chemical feed, electrical, and more.  Fiberglass shelters are available in standard sizes ranging from 28 in. x 54 in. to 12 ft x 12 ft.  Customer sizes are available.

Standard Building Sizes:

Standard features include:

  • Fiberglass reinforced polyester skins with one inch isocyanurate foam insulating core
  • White UV protective polyester gel coat inside and out
  • 125amp, main lug, 8 branch circuit panel in a NEMA 3R plastic enclosure
  • Pre-wired using 12ga. wiring in U.L. listed non-metallic flexible conduit
  • Two Duplex outlets (115v)
  • Interior vapor-resistant incandescent lamp
  • Corrosion resistant fan (intake or exhaust) with screened fiberglass hood
  • Fixed Aluminum ventilation louver
  • External weatherproof switch for fan and light
  • Stainless steel locket, stainless steel piano hinge, door gasket
  • Cadmium plated lifting eye(s)
  • Spring cushioned crash stop on door
  • Fiberglass awning above doorway
  • Equipment mounting board laminated to interior wall


Optional Features:

  • Window in Door
  • Heater with Thermostat & Dedicated Outlet
  • Panic Hardware
  • Partitions
  • Double Doors
  • Mounting Flange Gasket
